Electric Valve Actuator: Types, Benefits, Working & Applications

Industrial processes require reliable control systems to regulate the movement of liquids, gases, steam, and other process media. Valves play an important role in controlling flow, pressure, temperature, and direction within pipelines and process equipment. However, manually operating valves can become difficult, particularly when valves are installed in hazardous, remote, or frequently operated locations. Automation provides an effective solution by allowing valves to be operated accurately with minimum manual intervention. One of the important technologies used for this purpose is the Electric Valve Actuator.

An electric actuator converts electrical energy into mechanical movement, which is then used to open, close, or position a valve. Depending on the valve design and application, the actuator can provide rotary or linear movement. Modern actuator systems can also be integrated with control panels, programmable logic controllers, distributed control systems, and industrial communication networks. This makes them suitable for applications where accurate and repeatable valve control is essential.

What Is an Electric Valve Actuator?

An Electric Valve Actuator is a motor-driven device designed to automate the operation of industrial valves. Instead of relying on a person to turn a valve manually, the actuator receives an electrical control signal and produces the required mechanical movement. This movement operates the valve according to the requirements of the process.

Electric actuators generally contain an electric motor, gearbox, drive mechanism, control components, and position feedback systems. When an electrical signal is received, the motor rotates and transfers torque through the gearbox to the valve stem or shaft. Depending on the actuator configuration, the valve may move between fully open and fully closed positions or stop at an intermediate position for flow regulation.

These actuators are available in different configurations to accommodate various valve sizes, torque requirements, environmental conditions, and control systems. They are commonly used with butterfly valves, ball valves, globe valves, gate valves, and other industrial valve designs.

How Does an Electric Valve Actuator Work?

The basic working principle of an electric actuator is relatively straightforward. An electrical power source supplies energy to the actuator motor. When the control system sends an opening or closing command, the motor starts rotating in the required direction. The motor's rotation passes through a gear mechanism that increases torque and reduces rotational speed so that the actuator can operate the connected valve.

For example, when an opening command is received, the actuator rotates the valve stem or shaft until the required position is reached. Limit switches, position sensors, or electronic control systems can detect the valve position and stop the motor. A similar process occurs when the valve receives a closing command.

For modulating applications, the actuator can position the valve at different intermediate points rather than simply opening or closing it. This allows the system to regulate process flow more precisely. Advanced actuator systems may also provide feedback regarding valve position, operating status, torque, alarms, and other parameters to the central control system.

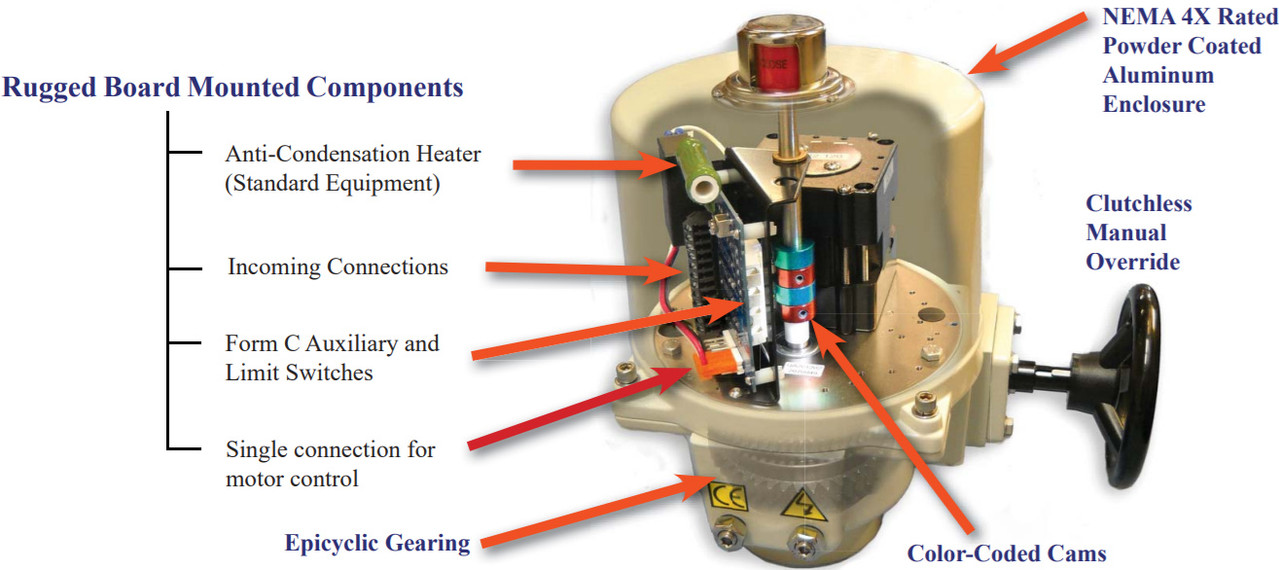

Main Components of an Electric Valve Actuator

Although actuator designs differ according to manufacturer and application, most systems contain several important components that work together.

Electric Motor

The motor provides the primary source of mechanical power. It converts electrical energy into rotational movement. Motors may be designed for different voltage levels and operating conditions depending on the installation.

Gearbox

The gearbox transfers motor rotation to the valve while increasing available torque and reducing speed. Proper gearing is particularly important when operating large valves that require substantial force.

Control Unit

The control unit manages actuator operation based on signals received from switches, controllers, PLCs, or other automation equipment. It may include electrical protection, control logic, and communication functions.

Limit and Position Sensors

These components help determine the valve's position. They can prevent over-travel and provide feedback to the control system.

Manual Override

Many industrial actuators include a manual override mechanism. This feature allows an operator to operate the valve manually when electrical power is unavailable or maintenance is required.

Enclosure

The enclosure protects internal components from dust, moisture, chemicals, and other environmental conditions. The appropriate enclosure rating depends on the installation environment.

Types of Electric Valve Actuators

Different industrial applications require different actuator designs. Selecting the appropriate type depends on valve construction, torque requirements, operating frequency, control method, and process conditions.

Quarter-Turn Actuators

Quarter-turn actuators rotate the valve shaft through approximately 90 degrees. They are commonly used with butterfly and ball valves. Their compact design and relatively quick operation make them suitable for applications requiring frequent opening and closing.

Multi-Turn Actuators

Multi-turn actuators rotate the valve stem through multiple revolutions. They are commonly associated with gate and globe valves. These valves may require several turns to travel between their open and closed positions, making multi-turn actuator systems appropriate for such applications.

Linear Electric Actuators

Linear actuators generate straight-line movement rather than rotary movement. They can be used where the valve or control mechanism requires linear positioning. These systems are useful in specific industrial control applications where precise linear motion is necessary.

Modulating Actuators

Modulating actuators allow valves to operate at intermediate positions. Instead of only opening or closing the valve, the actuator can adjust its position according to a control signal. This is useful for controlling flow, pressure, temperature, and other process variables.

On-Off Actuators

On-off actuators are primarily designed for two-position operation. The valve is moved between an open and closed position according to the control command. They are widely used in isolation and basic process control applications.

Electric Valve Actuator vs Manual Valve Operation

Manual valves can be practical for simple installations where operation is infrequent and the valve is easily accessible. However, manually operating valves throughout a large industrial facility can require considerable time and labor. It can also make centralized process control difficult.

An Electric Valve Actuator provides automated operation and can be controlled from a remote location. This is especially useful when valves are positioned in difficult-to-access areas or when a process requires frequent adjustments. Automated operation can also provide greater consistency because the valve can be moved according to predefined control commands.

Another important difference is integration. Electric actuators can communicate with automation systems, allowing operators to monitor and control valves through centralized interfaces. This capability is particularly valuable in modern manufacturing and process industries where automation and real-time monitoring are important.

Benefits of Electric Valve Actuators

Electric actuator technology offers several advantages for industrial valve automation.

1. Automated Operation

Actuators reduce the need for continuous manual valve operation. Commands can be sent automatically from control systems, improving operational convenience.

2. Accurate Positioning

Modulating actuator systems can position valves accurately according to process requirements. This can help maintain consistent flow and improve process control.

3. Remote Control

Valves installed in distant or difficult-to-access areas can be controlled remotely. Operators do not necessarily need to travel to every valve location.

4. Improved Operational Efficiency

Automation can reduce the time required for repetitive valve operations. It also enables processes to follow programmed operating sequences.

5. Feedback and Monitoring

Modern actuator systems can provide valve position and operational information to control systems. This makes it easier to identify abnormal conditions and monitor equipment.

6. Reduced Manual Labor

Automated valves can reduce repetitive manual work, particularly in facilities containing a large number of valves.

7. Integration With Automation Systems

Actuators can be connected with PLCs, SCADA systems, DCS platforms, and other industrial automation equipment, depending on their control and communication capabilities.

Applications of Electric Valve Actuators

Electric actuators are used across numerous industries because automated valve control is required in many different processes. Their applications range from water management and HVAC systems to manufacturing, power generation, chemical processing, and industrial utilities.

In water and wastewater treatment facilities, actuators can control the movement of water through pipelines, filtration systems, tanks, and treatment equipment. They can also help automate isolation and flow-control operations.

In power plants, automated valves are used in systems involving cooling water, steam, fuel, and other process fluids. Reliable positioning and remote operation are important because many valves may be located in areas that are not convenient for frequent manual access.

The chemical and process industries also depend on automated valve systems for handling different liquids and gases. Actuator selection in these environments must consider factors such as temperature, pressure, corrosive substances, hazardous-area requirements, and operating frequency.

Other common application areas include:

• Water treatment plants

• Wastewater facilities

• HVAC systems

• Power generation plants

• Chemical processing

• Pharmaceutical manufacturing

• Food and beverage processing

• Oil and gas facilities

• Manufacturing plants

• Irrigation systems

• Mining operations

• Industrial utility systems

Factors to Consider When Selecting an Electric Valve Actuator

Choosing an actuator should not be based only on valve size. Several technical and environmental factors need to be considered to ensure dependable operation.

Valve Type

The first step is identifying the type of valve being automated. Ball and butterfly valves commonly require quarter-turn movement, while gate and globe valves may require multi-turn or linear movement.

Required Torque or Force

The actuator must produce sufficient torque or linear force to operate the valve under actual process conditions. Selecting an undersized actuator can result in unreliable operation, while excessive sizing may unnecessarily increase cost and energy consumption.

Power Supply

The available electrical supply must match the actuator's requirements. Voltage, phase, frequency, and electrical infrastructure should be checked before installation.

Operating Environment

Temperature, humidity, dust, chemicals, outdoor exposure, and other environmental conditions can influence actuator selection. The enclosure and protection level should be suitable for the installation.

Operating Frequency

Some valves operate only occasionally, while others may cycle frequently. The actuator should be capable of handling the expected operating duty without excessive heating or mechanical wear.

Control Requirements

Determine whether the actuator requires simple open-close control or continuous modulation. Communication and feedback requirements should also be considered when integrating the actuator into an automation system.

Comparison of Common Actuator Types

Installation and Maintenance Considerations

Correct installation is important for reliable actuator performance. The actuator should be properly aligned with the valve, and mounting hardware should be secured according to the equipment manufacturer's requirements. Electrical connections should also be completed by appropriately qualified personnel while following applicable safety procedures.

Maintenance requirements vary depending on the actuator design and operating environment. Routine inspections can include checking electrical connections, mechanical components, seals, position feedback, mounting arrangements, and abnormal noise or vibration. If the actuator operates in a harsh environment, inspections may need to be performed more frequently.

Keeping the actuator and surrounding area clean can also help reduce the possibility of contamination affecting external components. Any unusual operating behavior, such as delayed movement, excessive noise, inconsistent positioning, or repeated electrical faults, should be investigated promptly.

Role in Industrial Automation

The use of an Electric Valve Actuator has become increasingly important as industrial facilities move toward greater automation. Modern production environments require equipment that can respond quickly to process commands while providing useful operating feedback.

When integrated with a PLC, SCADA, or DCS, an actuator can become part of a larger automated control strategy. Operators can monitor valve positions and send commands through centralized control interfaces. In more advanced installations, actuators can also communicate diagnostic information and operating parameters to help maintenance teams identify potential problems.

This level of integration can support improved process visibility and more consistent operation. It also enables engineers to design automated sequences in which multiple valves operate according to predefined conditions.

Safety and Reliability Considerations

Safety should always be considered when selecting and installing valve automation equipment. The actuator must be appropriate for the valve and process conditions, and electrical installation should comply with applicable standards and site requirements.

Certain industrial environments may require specially certified equipment, particularly where flammable gases, vapors, or combustible dust may be present. In such applications, the actuator and associated electrical equipment must meet the required hazardous-area specifications.

Fail-safe requirements should also be evaluated. Depending on the process, a valve may need to remain in its existing position or move to a predetermined position when power or control signals are lost. The appropriate solution depends on the process design and safety requirements.

Future of Electric Valve Actuation

Industrial automation continues to evolve toward smarter and more connected equipment. Electric actuators are increasingly being designed with digital control capabilities, enhanced diagnostics, communication interfaces, and improved position monitoring.

Connected actuator systems can provide more information than simple open and closed signals. Operational data can potentially help maintenance teams identify changes in performance and schedule inspections based on equipment condition rather than relying exclusively on fixed maintenance intervals.

Energy efficiency and compact actuator designs are also becoming important considerations. As industrial facilities focus on improving productivity and reducing unnecessary operating costs, automated valve systems will continue to play an important role in modern process control.

Conclusion

Valve automation is an important part of modern industrial process management. An Electric Valve Actuator enables reliable and controlled valve movement while reducing dependence on manual operation. From water treatment and HVAC systems to chemical processing, power generation, manufacturing, and industrial utilities, these devices can support a wide range of automation requirements.

Selecting the right actuator requires careful consideration of valve type, torque, movement, power supply, operating environment, duty cycle, control method, and safety requirements. Proper installation and regular maintenance are equally important for achieving dependable performance.
